SWR/POWER Meter LUNARIS-G6 HF/VHF UHF

Amber OLED Display STUNNING FAST - TRIBAND


Description: LUNARIS G6 is a Professional grade TRI BAND -HF/ VHF UHF SWR/POWER METER. Highly accurate for measuring Forward, Reflected Power & VSWR. CALIBRATED with ROHDE & SCHWARZ SIGNAL GENERATOR SMY 01


Download Catalog:
Availability: In Stock ( 2 )

International Consumers: $108

Indian Consumers: र 8964

LUNARIS G6 is a Professional grade TRI BAND -HF/ VHF UHF SWR/POWER METER.

Highly accurate for measuring Forward, Reflected Power & VSWR. CALIBRATED with ROHDE & SCHWARZ SIGNAL GENERATOR SMY 01

Brought to you by CEDA-Labz for Ham fraternity & RF Power amplifier experimenters who looks for professional and aesthetically designed devices moderatly priced.

SWR meters are used to measure and denote the standing wave ratio in a communication line. That is, the meter will denote the exact mismatch between the transmission line and the load, thus helping to know the degree of effectiveness of the impedance matching efforts.

MODEL NO.

 LUNARIS-G6

SPECIFICATIONS



FREQUENCY  RANGE

   1.6-60 MHz / 140-525 MHz

CALIBRATION  POINT

   14MHz /50MHz /145MHz / 435 MHz

POWER  RANGE (AUTORANGING)

   0 -200W  (0.5watt min. display)

ACCURACY

   (+ / - 6%)

MINIMUM POWER FOR SWR

   1 WATT

REFLECTED POWER ALARM +

BRIGHT  INDICATOR

   USER  PROGRAMMABLE  1 WATT  ONWARDS TILL the desired level.

   Besides  Alarm a BRIGHT LED FLASHES TOO.

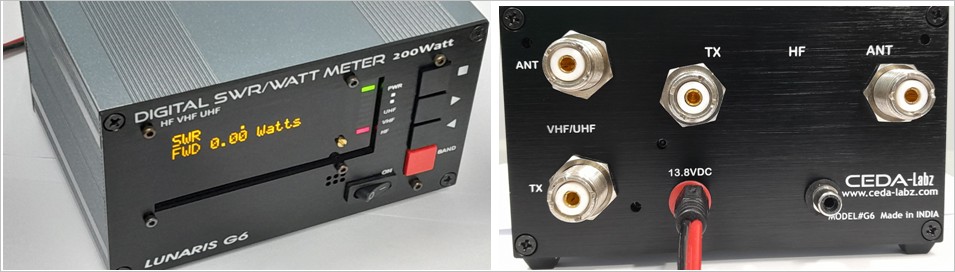

FRONT PANEL



 OLED DISPLAY

   INDICATES  FWD/REF & VSWR

BAND SWITCH

   SELECT HF & VHF/UHF

POWER SWTCH

   SWITCHING METER ON AND OFF

3 SOFT TOUCH PUSH BUTTON SWITCH – USER PROGRAMMABLE

   SETS REF POWER ALARM, BARGARAPH OR ACTUAL VALUE

SMA FEMALE CONNECTOR

   RF SAMPLER (HF) CAN BE FED TO OSCILLOSCOPE OR SPECTRUM ANALYSER -OPTIONAL

REAR PANEL


TX Connector -HF
ANT Connector -HF

TX Connector -VHF/UHF
ANT Connector -VHF/UHF

Power Source
   50 ohms SO239 Coax. Connector to transmitter RF OUTPUT
   50 ohms SO239 Coax. Connector to antenna system

   50 ohms SO239 Coax. Connector to transmitter RF OUTPUT (N connector option on request)
   50 ohms SO239 Coax. Connector to antenna system (N connector option on request)

   13.8V (requires external power adapter and not a part of the Package)
Dimensions    145mm(w) x 125mm(includes connector) (d) x 95mm (h)

























Awesome Stunning Amber OLED display . All readings are satisfactory ---VU2HO
