LUNARIS2000 2KW-SWR/POWER Meter

Easy to monitor, LARGE LCD, HIGHLY ACCURATE


Description: LUNARIS 2000 is a Professional grade 2KWATT HF VSWR/POWER METER.


Download Catalog:
Availability: In Stock ( 2 )

International Consumers: $215

Indian Consumers: र 17845

LUNARIS 2000 is a Professional grade 2KWATT HF VSWR/POWER METER.

Highly accurate for measuring Forward, Reflected Power & VSWR. CALIBRATED with ROHDE & SCHWARZ SIGNAL GENERATOR SMY 01

Brought to you by CEDA-Labz for Ham fraternity & RF Power amplifier experimenters who looks for professional and aesthetically designed devices moderatly priced.











LUNARIS 2000 is a derivative design and my thanks to many users for their feedbacks. More on derivative design and GNU can be found in the DISCLAIMER section of this site

Acknowledgements and some references:
Power and SWR Meter;
TF3LJ/VE2AO loftur Jonasson
PD0LEW, Johan Holstein

RF MILIWATT METER
https://pa0rwe.nl/?page_id=356

RF MILIWATT METER
https://radio.g4hsk.co.uk/

Digital RF Wattmeter OZ2CPU
https://www.on1bes.be/oz2cpl_power_meter_en.html

https://sites.google.com/site/lofturj/15-power-and-swr-meter-rev-ii



SWR meters are used to measure and denote the standing wave ratio in a communication line. That is, the meter will denote the exact mismatch between the transmission line and the load, thus helping to know the degree of effectiveness of the impedance matching efforts.



LUNARIS 2000 Specifications
FREQUENCY  RANGE 1.8-56Mhz
POWER RANGE  -20db(10 micro watt) to 2 Kilowatt AUTORANGING
ACCURACY (+ / - 5%) Power is measured 200 Times per second
RESOLUTION  0.025 db resolution (12bits ADC used)
MINIMUM POWER FOR SWR
1 mW onwards – USER PROGRAMMABLE Alarm.
Adjustable SWR Alarm threshold 1.5 to 3.9
DISPLAY LCD 4” Diagonally displays Average/PEAK power, Reflected Power and SWR.
ALL THE PARAMETERS IS BEING DISPLAYED TOGETHER
DC POWER  12-24VDC @250ma Typical through extenal source
CONTROLLER ARM Cortex-M7 at 600 MHz
MODES Forward & Reflected Power, MODULATION SCOPE, 100mS to 2.5seconds Peak power, 100ms Average Power and 1s Average Power and Power in dBm
ALARM Audible/Visual SWR Alarm – user defined Power Level

FRONT PANEL

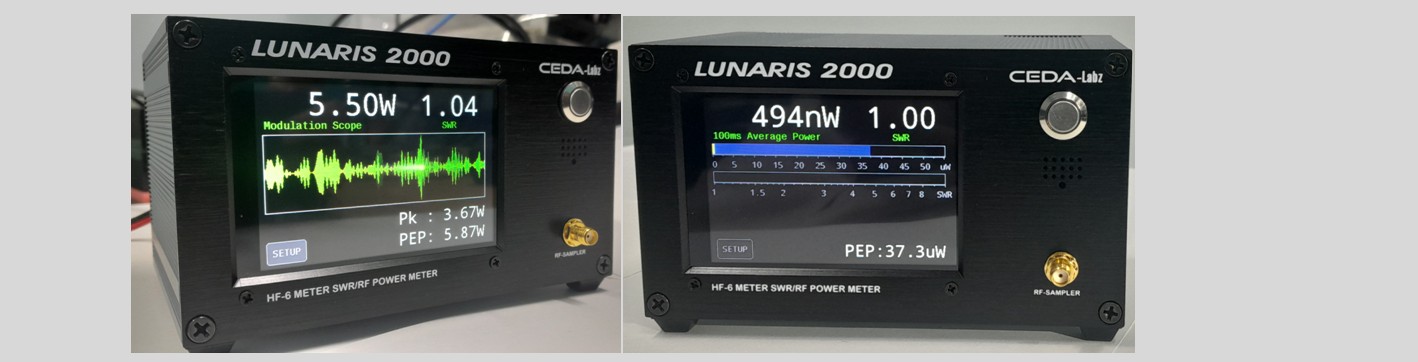

LCD BIG BRIGHT CRISP EXCELLENT RESOLUTION EASY TO READ DISPLAY in dbm or WATT
TOUCH SCREEN FOR NAVIGATION & CONFIGURATION FOR MENU SELECTION
POWER SWITCH SOFT TOUCH POWER SWITCH

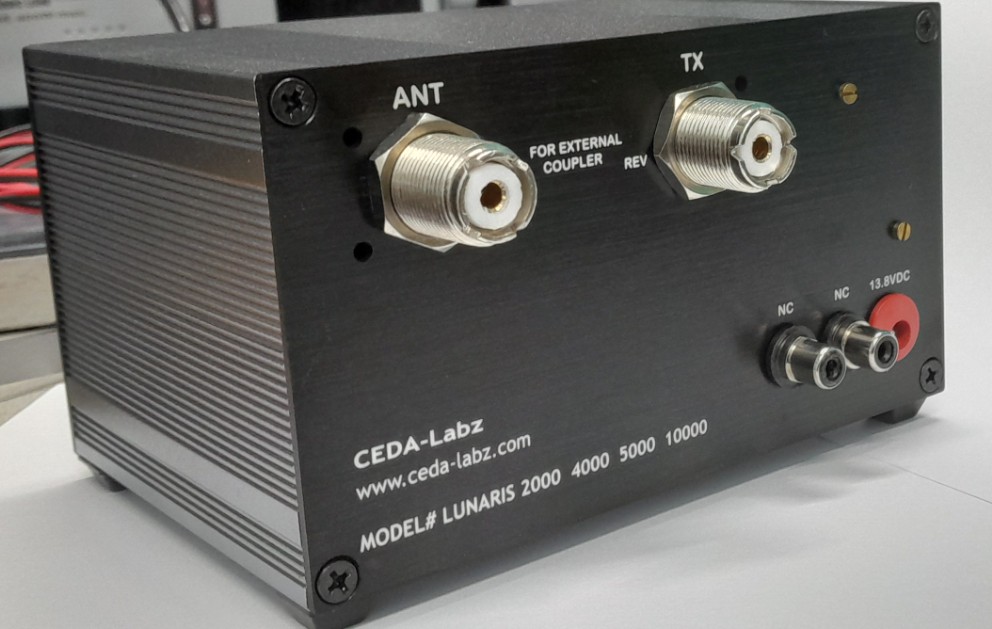

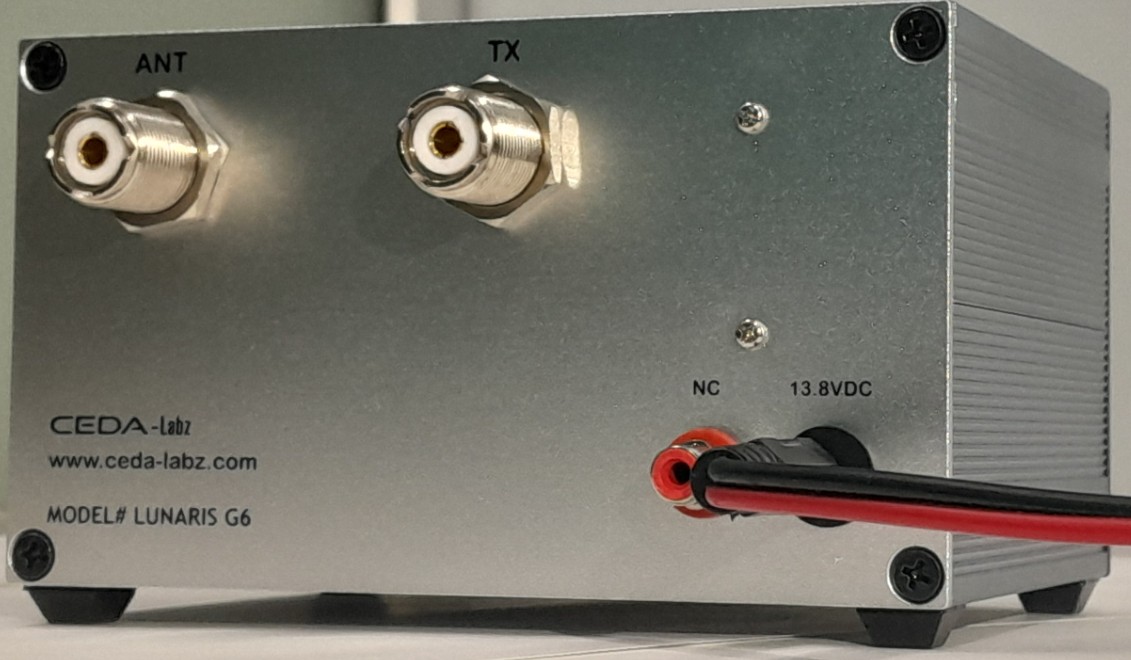

SMA FEMALE CONNECTOR RF Sampler - 17db
POWER DISPLAY SEQUENCE PEAK POWER FOR 1-5 SECONDS (user defined) INITIALLY AND THEN DISPLAYS AVERAGE POWER
