SWR METER HF/VHF UHF ALL IN ONE
Introducing LUNARIS G6-TRIBAND 200 watt SWR METER with OLED DISPLAY
RF Power Meter 10MHz - 8GHz
-40dbm to +20dBm
Download Catalog:
Availability: In Stock ( 0 )
International Consumers: $425
Indian Consumers: र 35275
Indian Consumers: र 35275
Perfectly suited to measure RF Carriers power (e.g. satellite, cable, terrestial). Designed for Desktop Lab applications. Easy for mobile operation with LIPO Battery (as optional). LUNARIS M24 is perfect solution for -
- Broadband monitoring applications
- RF/IF Power Measurements
- RF Leakage Monitor
- FAST FEEDBACK Levelling circuits
- RF Power Control
- Receiver RF/IF Gain Control
- RSSI measurement
Other benefecial features such as threshold monitoring/ alarming, minimum and maximum RF POWER Monitoring
DIRECT FEED / INLINE (OPTIONS) Possibility

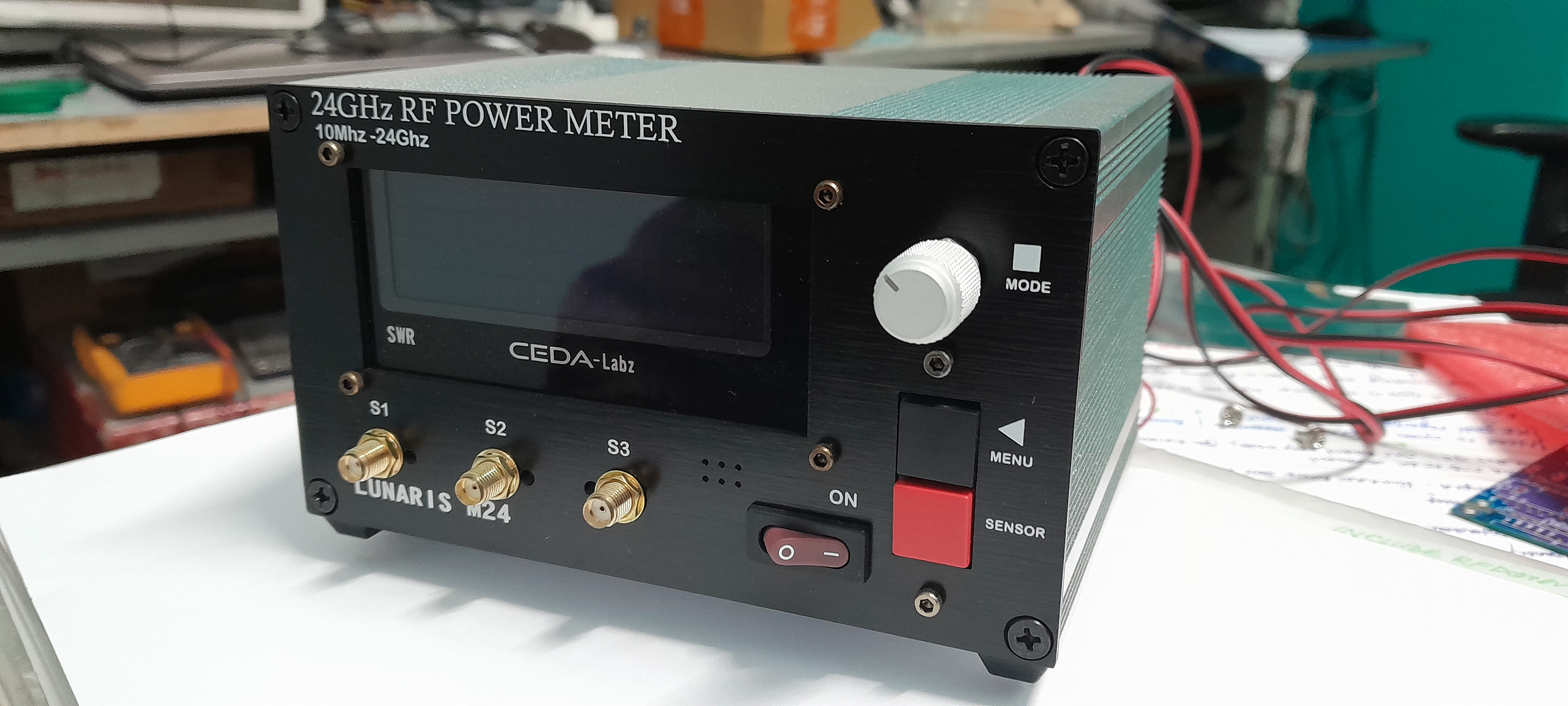

LUNARIS M24 has a front panel OLED Display and keypads allowing easy local configuration & RF Monitoring
Perfectly suited to measure RF Carriers power (e.g. satellite, cable, terrestial). Designed for Desktop Lab applications. Easy for mobile operation with LIPO Battery (as optional). LUNARIS M24 is perfect solution for -
- Broadband monitoring applications
- RF/IF Power Measurements
- RF Leakage Monitor
- FAST FEEDBACK Levelling circuits
- RF Power Control
- Receiver RF/IF Gain Control
- RSSI measurement
Other benefecial features such as threshold monitoring/ alarming, minimum and maximum RF POWER Monitoring
DIRECT FEED / INLINE (OPTIONS) Possibility
LUNARIS M24 has a front panel OLED Display and keypads allowing easy local configuration & RF Monitoring
| Dimensions | 145 x 120 x 90mm |
| Weight | 1kg |
| Power Supply | 12VDC |
| Frequency Range | 10Mhz - 8GHz |
| Dynamic Range | 67dB (-40dBm to +27dBm) |
| Instrumentation Accuracy | 0.5dB typ. +/-1dB |
| Input Connectors | BULK HEAD SMA female |
| Max. RF Input Power Direct Feed | -40dbm to +20dbm (100nw to 100mw) |
| Max. RF Input Power IN-LINE Through Built in Coupler | +20dbm to +47dBm (100mw to 50watt) |
| Local Configuration | OLED-Display/keypad/rotary Encoder |
| Operating Temperature | -20 - 45degree centrigade |
| Storage Temperature | -20 -70 degree centigrade |
| Humidity | 90%, non-condensing |
| Power Consumptions | 250ma |
