SWR/POWER Meter LUNARIS-2G4

Pentaband 144MHz - 2.4GHz


Description: LUNARIS 2G4 is a 5Band VHF UHF


Download Catalog:
Availability: In Stock ( 7 )

International Consumers: $147

Indian Consumers: र 12201

LUNARIS 2G4 is a 5Band VHF UHF 900MHz 1.2GHz 2.4GHz SWR/POWER METER

For measuring Forward, Reflected Power & VSWR. CALIBRATED with AGILENT N9310A RF Signal Generator

Brought to you by CEDA-Labz for Ham fraternity & RF Power amplifier experimenters who looks for professional and aesthetically designed devices moderatly priced.

SWR meters are used to measure and denote the standing wave ratio in a communication line. That is, the meter will denote the exact mismatch between the transmission line and the load, thus helping to know the degree of effectiveness of the impedance matching efforts.

MODEL NO.

 LUNARIS-2G4

SPECIFICATIONS



FREQUENCY  RANGE

   140-525 MHz   900-930MHz    1.2GHz    2.4GHz

CALIBRATION  POINT

   145MHz / 435 MHz / 930MHz / 2.4GHz

POWER  RANGE (AUTORANGING)

   200W - VHF/UHF

   50WATT - 900MHz/1.25GHz/2.4GHz

ACCURACY

   (+ / - 6%)

MINIMUM POWER FOR SWR

   1 WATT

REFLECTED POWER ALARM +

BRIGHT  INDICATOR

   USER  PROGRAMMABLE  1 WATT  ONWARDS TILL the desired level.

   Besides  Alarm a BRIGHT LED FLASHES TOO.

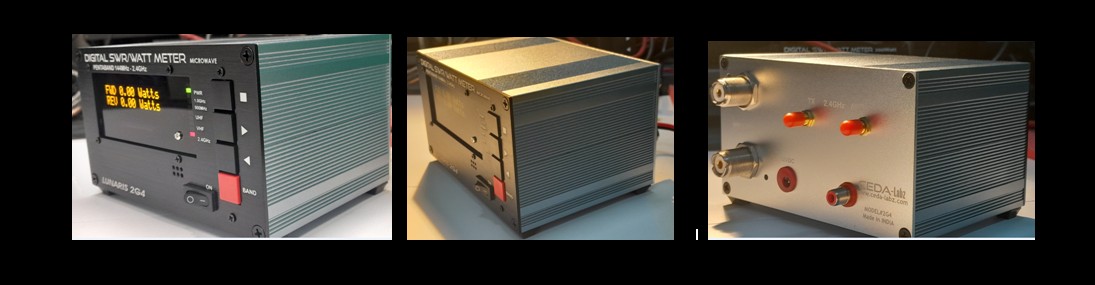

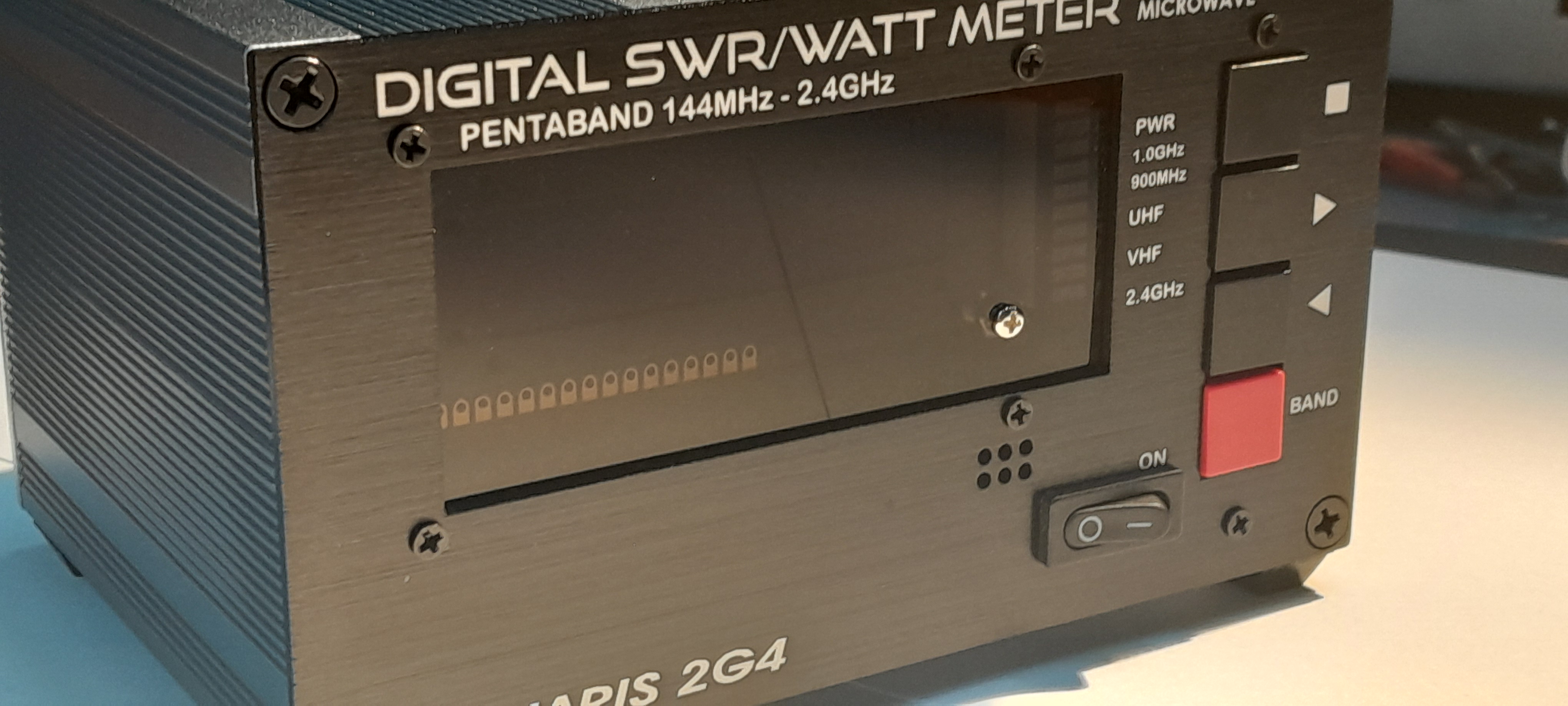

FRONT PANEL



 OLED DISPLAY

   INDICATES  FWD/REF & VSWR

BAND SWITCH SEQUENCE

   SELECTS 2.4GHz, VHF, UHF, 900MHz, 1.2GHz

POWER SWTCH

   SWITCHING METER ON AND OFF

3 SOFT TOUCH PUSH BUTTON SWITCH – USER PROGRAMMABLE

   SETS REF POWER ALARM, BARGARAPH OR ACTUAL VALUE

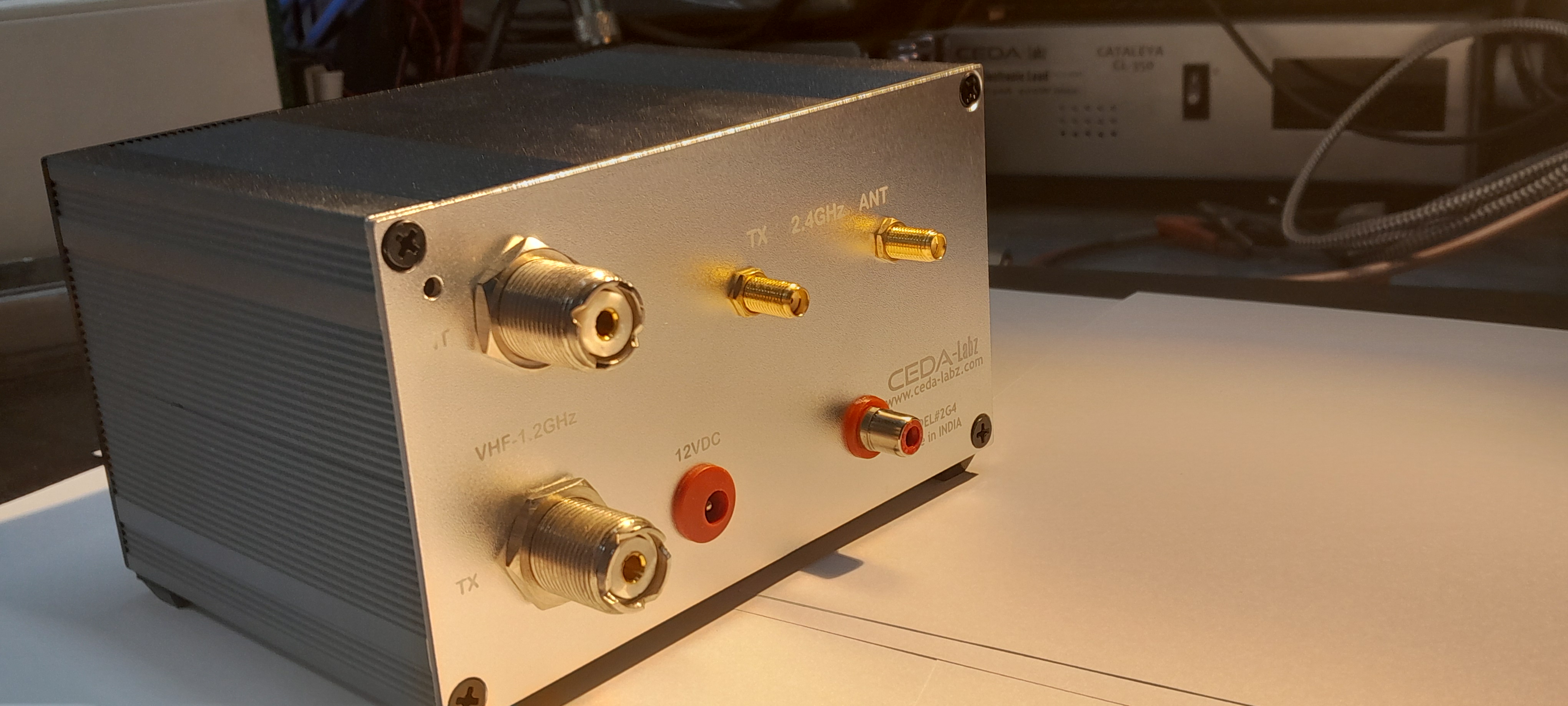

REAR PANEL


TX Connector -VHF-1.2GHz                 ANT Connector -VHF-1.2GHz


TX Connector -2.4GHz
ANT Connector -2.4Ghz



Power Source
   50 ohms SO239 Coax. Connector to transmitter RF OUTPUT
   50 ohms SO239 Coax. Connector to antenna system


   50 ohms SMA FEMALE Connector
   50 ohms SMA FEMALE Connector



   13.8V (requires external power adapter and not a part of the Package)
Dimensions    145mm(w) x 125mm(includes connector) (d) x 95mm (h)
