1.5KW Directional Coupler 1.8-54Mhz

4 Toroid Design with excellent linearity


Description: ON Board BULK HEAD SO239 Connector soldered directly on Board The board consists of a Tandem match Directional coupler The transformers are wound on 43 material cores with 23:1 ratio which is then attenuated 25db by a resistor pad The Signal is then f


Download Catalog:
Availability: In Stock ( 8 )

International Consumers: $35

Indian Consumers: र 3360

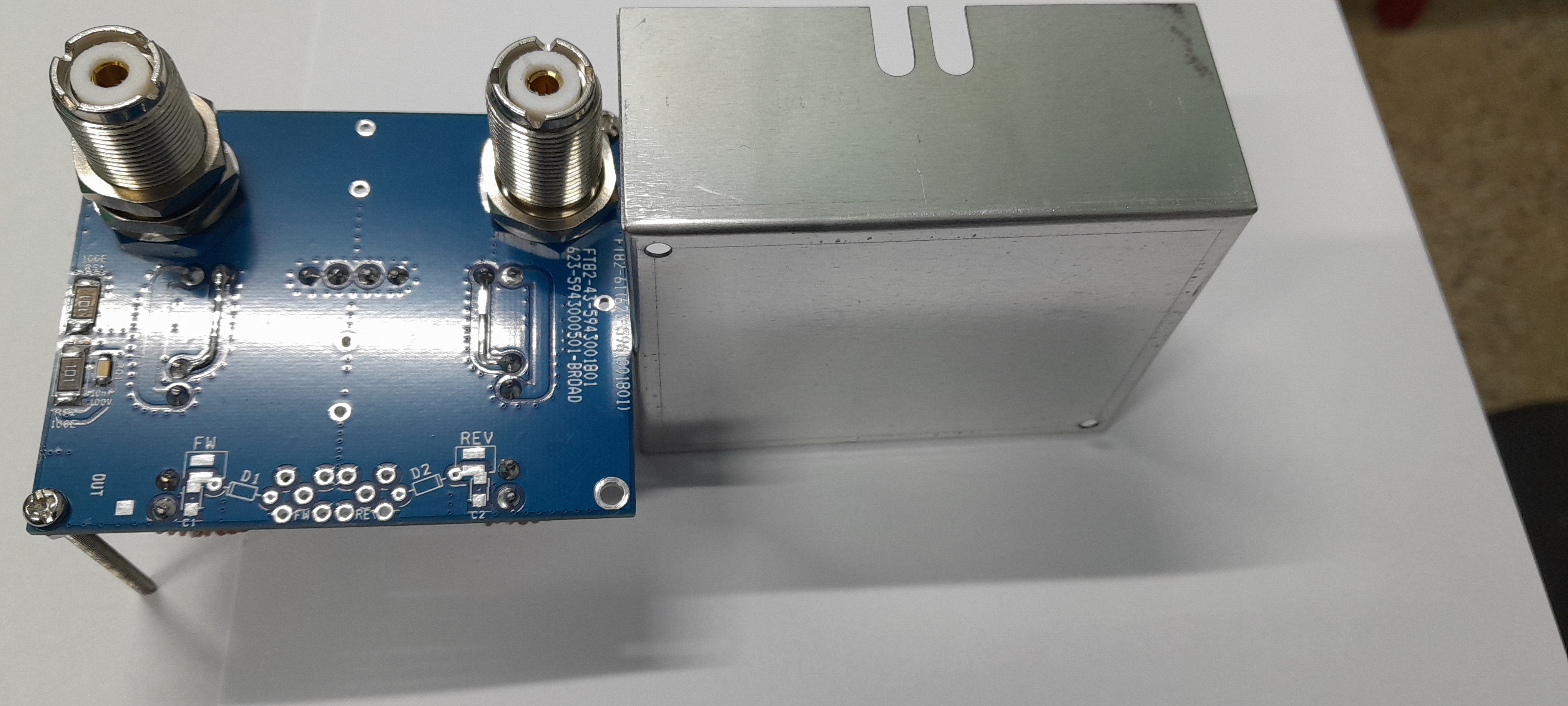

ON Board BULK HEAD SO239 Connector soldered directly on Board

  • The board consists of a Tandem match Directional coupler
  • The transformers are wound on 43 material cores with 23:1 ratio which is then attenuated 25db by a resistor pad
  • The Signal is then fed into 2 x BAT85 Schottky diodes
  • In case you don’t want the demodulated output from the detector diode - you can select another PAD in the PCB already there



  • PCB Size: 78 x 65 mm
  • Directivity: Better than 30db
  • Power Handling: 10mw - 1.5KW
  • High quality LOW LOSS Copper wire used in transformers.
  • Low insertion loss
  • Excellent SWR possibility
  • BULK HEAD SO239 customized connector directly Soldered in PCB
  • The coupler can be easily mounted on the Rear panel with the accompanied HEX Nuts

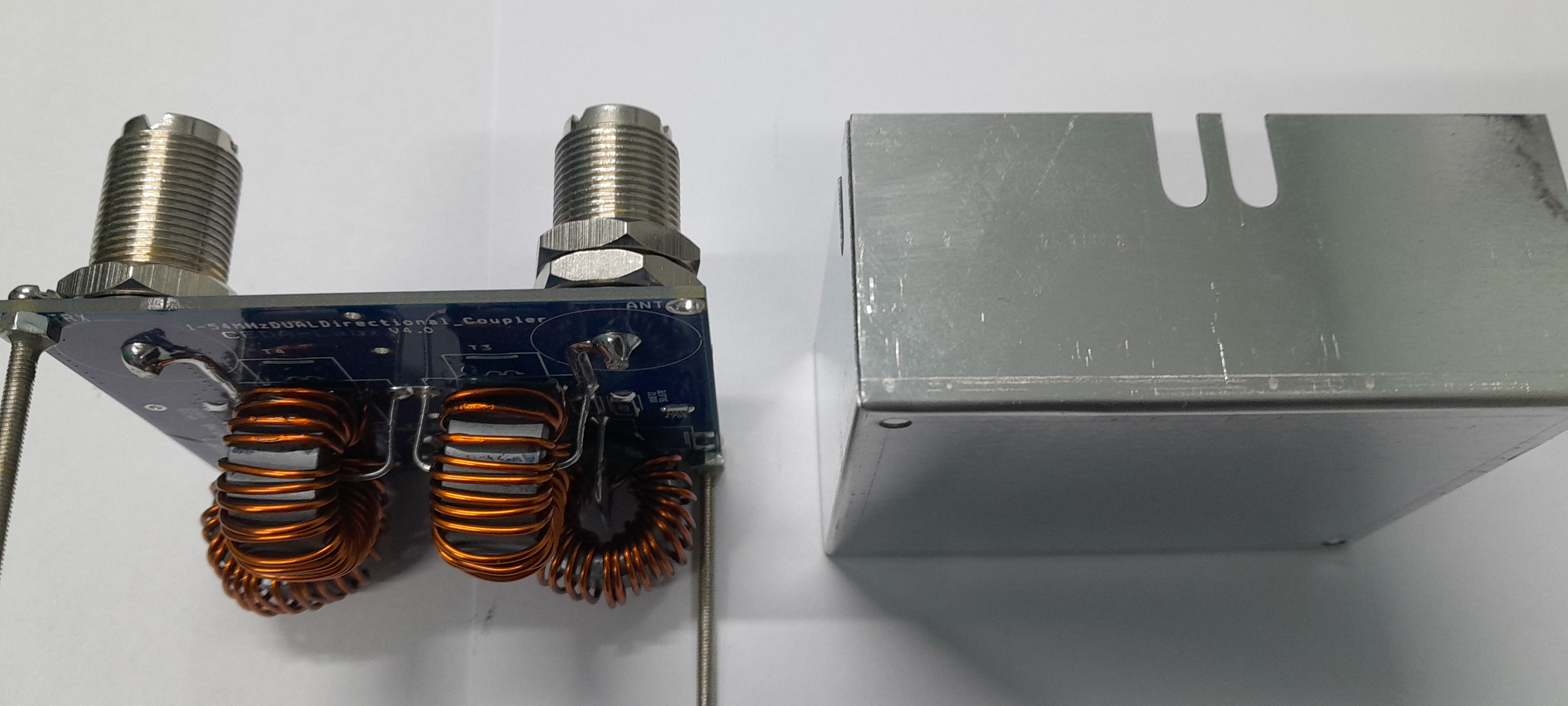

  • Shield BOX with long screws has been provided



1KW Power-SWR Directional Coupler 1.8-54Mhz with Detector diode

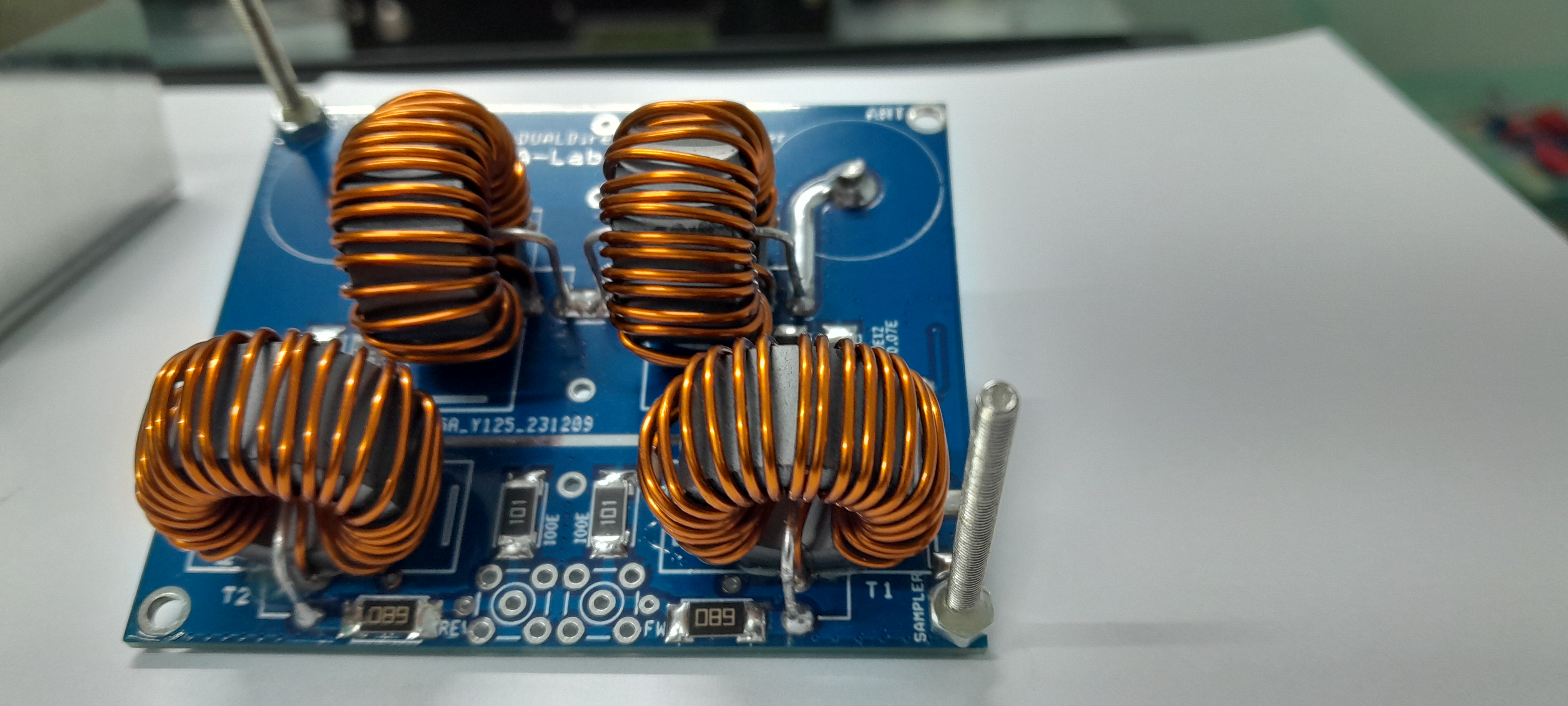

  • Designed with 4 TOROIDS with excellent linearity
  • The board consists of a Tandem match Directional coupler.
  • The transformers are wound on 43 material cores with 23:1 ratio which is then attenuated 25db by a resistor pad.
  • The Signal is then fed into 2 x BAT85 Schottky diodes
  • In case you don’t want the demodulated output from the detector diode - you can select another PAD in the PCB already there



1.5KW Power-SWR Directional Coupler 1.8-54Mhz with Detector diode

• Designed with 4 TOROIDS with excellent linearity
• The board consists of a Tandem match Directional coupler.
• The transformers are wound on 43 material cores with 23:1 ratio which is then attenuated 25db by a resistor pad.
• The Signal is then fed into 2 x BAT85 Schottky diodes
• In case you don’t want the demodulated output from the detector diode - you can select another PAD in the PCB already there

• PCB Size: 78 x 65 mm
• Directivity: Better than 30db
• Power Handling: 10mw - 1.5KW
• High quality LOW LOSS Copper wire used in transformers.
• Low insertion loss
• Excellent SWR possibility
• BULK HEAD SO239 customized connector directly Soldered in PCB
• The coupler can be easily mounted on the Rear panel with the accompanied HEX Nuts
• FREE Shield BOX with long screws has been provided
