1KW POWER & SWR METER HF/6M
Introducing LUNARIS G1000-HF/6M 1K watt SWR METER with OLED DISPLAY
LUNARIS G1000
RF Power Meter -1KW HF-6meter
- PRECISE & ACCURATE
- Displays Forward, Revere & VSWR
- OLED DISPLAY FOR HIGH VISIBILITY
- AUTO SCALING
Description:
A 1-kilowatt (1 kW) RF power meter—often called an RF wattmeter or SWR power meter—is a device used to measure high radio frequency power up to 1,000 watts. Popular options include diode detectors and logarithmic detectors.
Lunaris G1000 is a 1Kwatt RF WATTMETER for HF & 6M. Highly accurate & fast for measuring Forward, Reflected
Download Catalog:
Availability: In Stock ( 4 )
International Consumers: $158
Indian Consumers: र 15168
Indian Consumers: र 15168
A 1-kilowatt (1 kW) RF power meter—often called an RF wattmeter or SWR power meter—is a device used to measure high radio frequency power up to 1,000 watts. Popular options include diode detectors and logarithmic detectors.
Lunaris G1000 is a 1Kwatt RF WATTMETER for HF & 6M. Highly accurate & fast for measuring Forward, Reflected Peak/Average Power & VSWR
CALIBRATED with Agilent N9310A RF Signal Generator
- PRECISE & ACCURATE
- OLED DISPLAY for high visibility
- Displays Forward, Reverse & VSWR
- AUTO SCALING
Testing and tuning radio transmitters and linear amplifiers.
Checking antenna match and measuring signal efficiency in ham radio or broadcast stations.
| FREQUENCY RANGE | 3MHz - 56MHz |
| POWER RANGE (AUTO-RANGING) | 0 -1000W (1 W min. display) |
| ACCURACY | (+ / - 6%) |
| MINIMUM POWER FOR SWR | 1WATT |
| REFLECTED POWER ALARM | USERS PROGRAMMABLE - 1 WATT ONWARDS TILL the desired level |

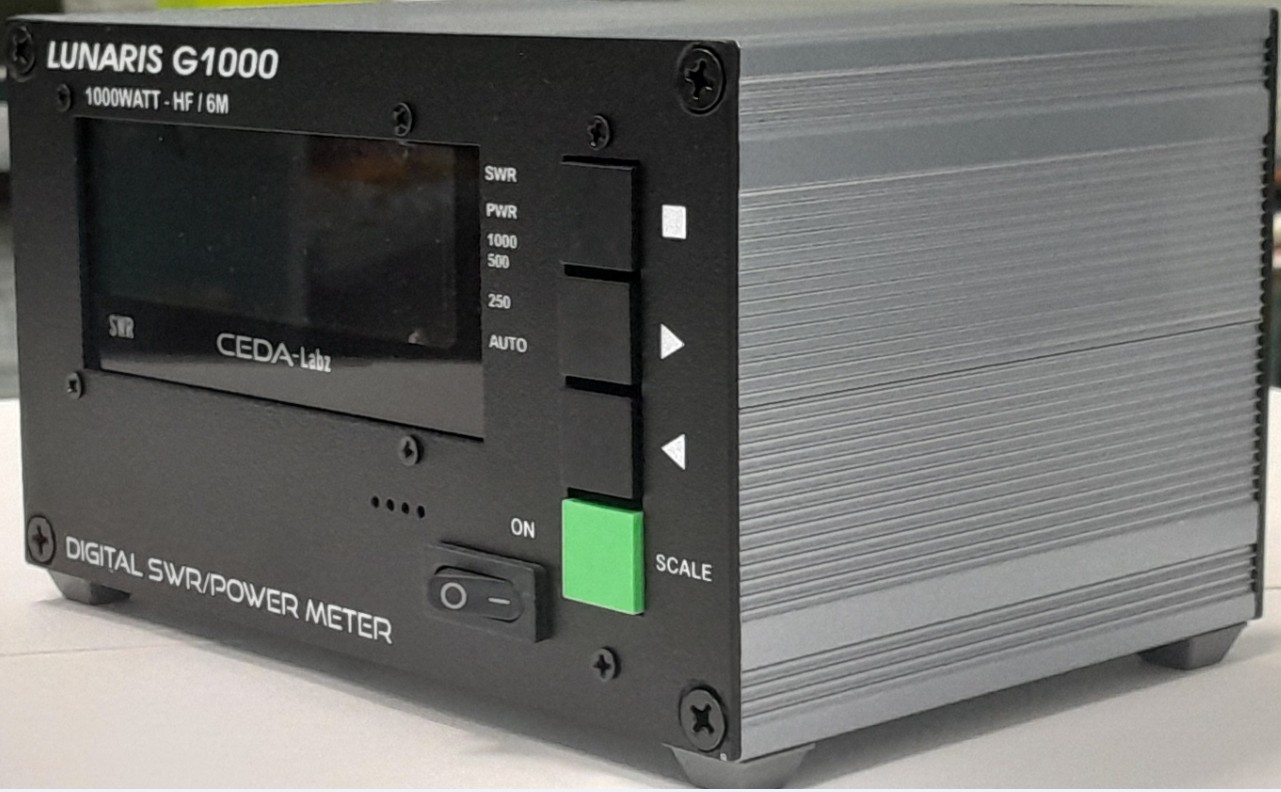

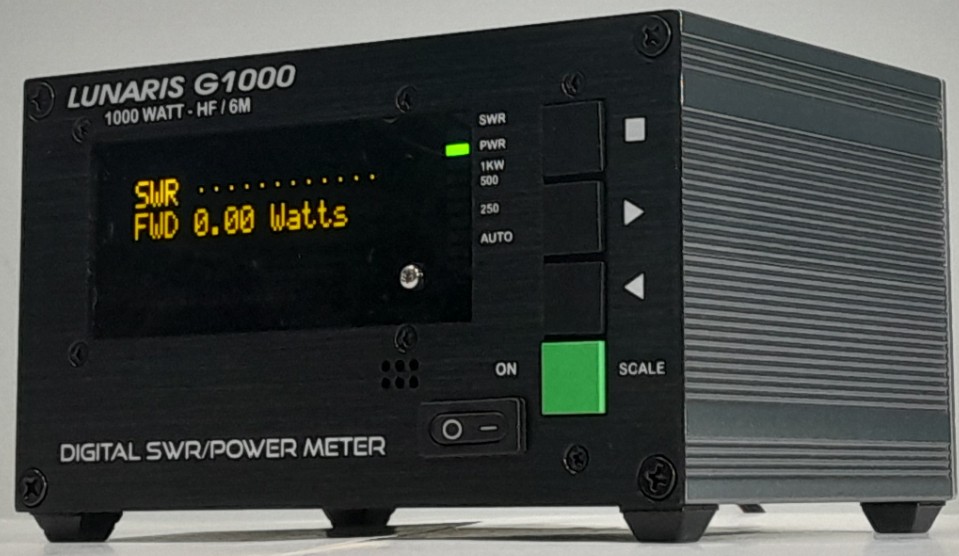

| FRONT PANEL | |
| OLED TEXT DISPLAY |
BRIGHT YELLOW OLED STUNNING FAST REAL TIME DISPLAY 360 degree readability and no readability issue from any angle. Can be read from short distance DISPLAYS FWD/REF & VSWR/ meter input DC VOLTAGE DISPLAY AUTO SHUT OFF |
| MOUNT | DESKTOP |
|
USER SWTCH
3 SOFT TOUCH PUSH BUTTON SWITCH –USER PROGRAMMABLE
|
SOFT TOUCH PUSH BUTTON
SETS REFLECTED POWER WITH ALARM IN BARGARAPH OR ACTUAL VALUE
|
| POWER DISPLAY SEQUENCE | PEAK POWER FOR 2 SECONDS INITIALLY AND THEN DISPLAYS AVERAGE POWER |

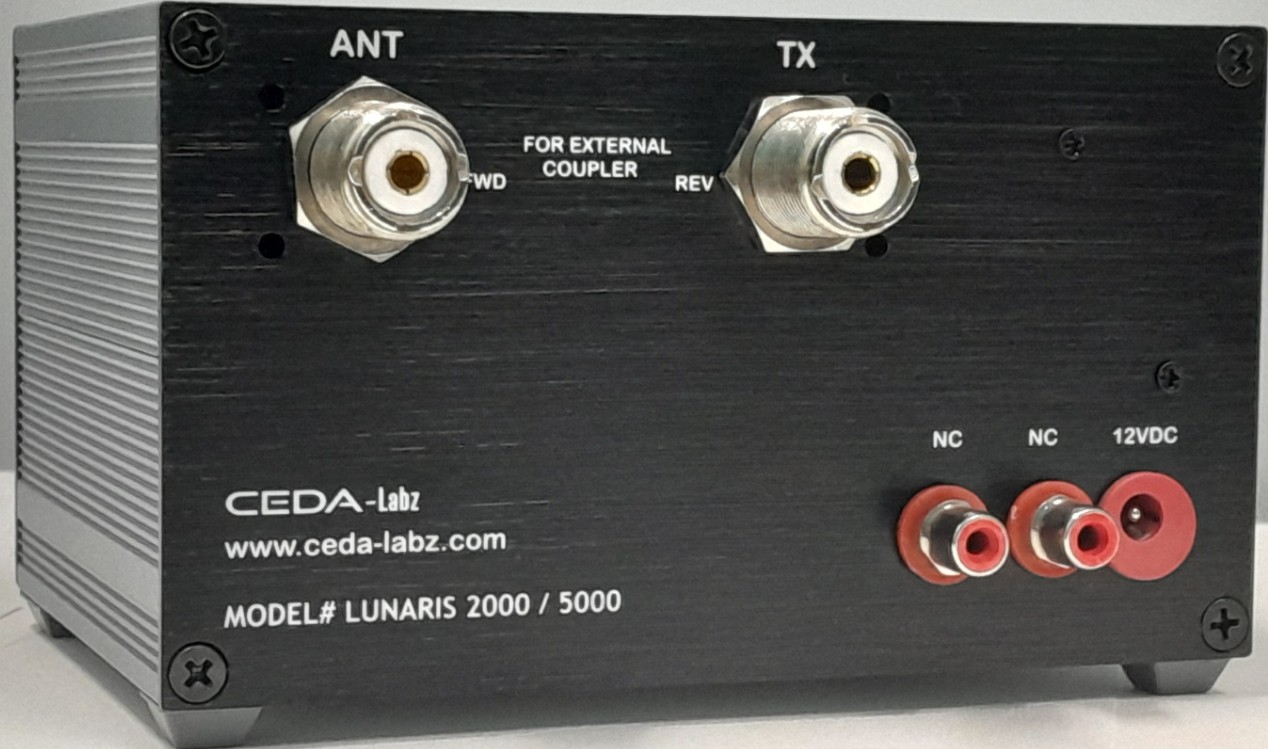

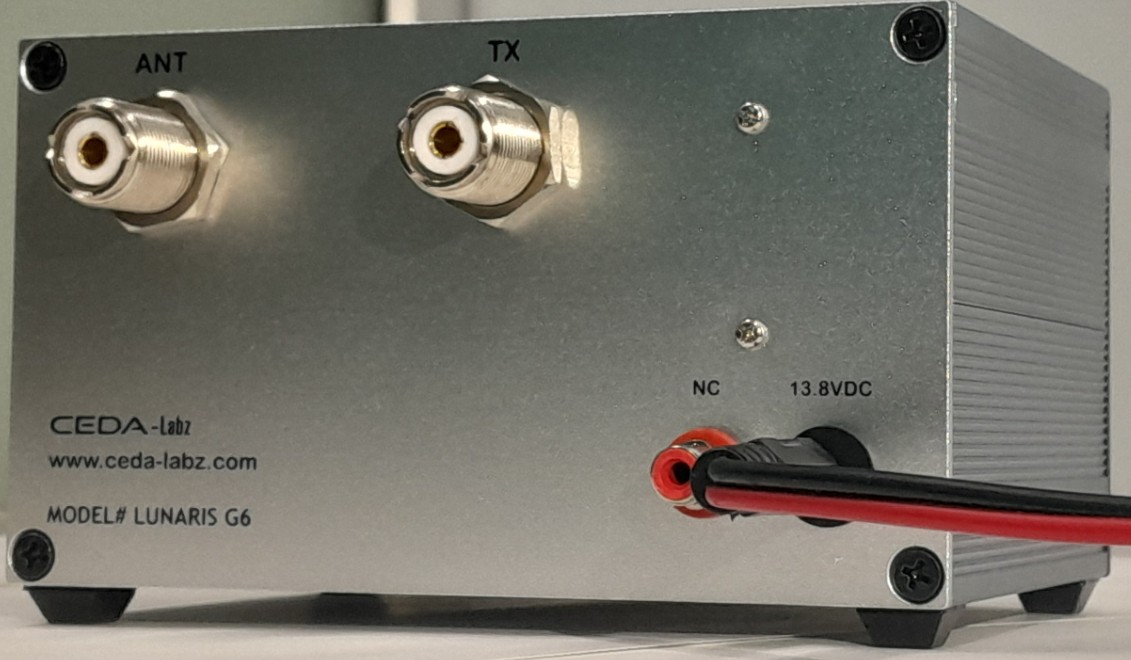

| REAR PANEL | |
|
TX /ANT Connector |
2x SO239 50 ohms Coax. Connector for HF |
|
Power Source |
12-13.8V DC max. @75ma INPUT DC POLARITY PROTECTED |
|
RCA PORT x 2 |
DUMMY – RERSERVED FOR FUTURE USE |
| DIMENSION | 145mm(w) x 125mm(includes connector) (d) x 95mm (h) |
