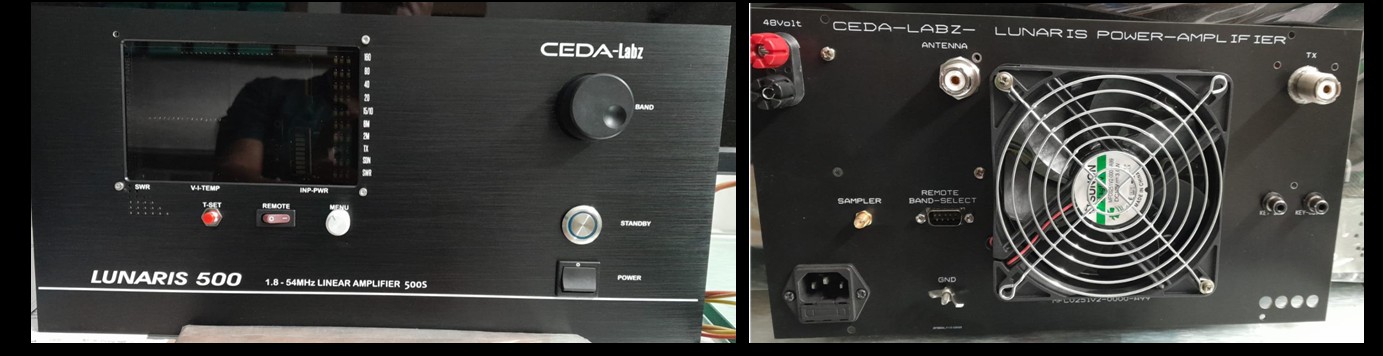

500W RF Amplifier HF/6M


Description: USAGE The LUNARIS 500 is a LDMOS based power amplifier that covers all amateur bands from 1.8  through 56 MHz and provides approx.500 W rated output power (PEP).   EASY TO OPERATE


Download Catalog:
Availability: In Stock ( 0 )

International Consumers: $899

Indian Consumers: र 86304

USAGE
The LUNARIS 500 is a LDMOS based power amplifier that covers all amateur bands from 1.8  through 56 MHz and provides approx.500 W rated output power (PEP).

EASY TO OPERATE
The amplifier power information is shown on a high-resolution OLED TEXT display. Therefore, you need not to install a separate POWER Meter. BUILT IN SWR/POWER and VOLTAGE, CURRENT and Temperature display
LUNARIS 500 can be controlled either by the six front panel switches or remotely(optional separate cost)

INTELLIGENCE
Takes care of itself via continuously working
COMPACT AND LIGHT WEIGHT CONSTRUCTION
Compact and lightweight construction and the built-in FLAT PACK Mean well switching-mode power supply (SMPS). SMPS operates with extended mains voltage range of 180-240 VAC, with no internal switch over. The consumed current is purely sinusoidal, Power Factor Corrected (PFC) and inrush limited. This makes the operation of unstable mains and generators easy

An RF (Radio Frequency) amplifier increases the power or amplitude of a weak radio frequency signal without adding excessive noise or distortion

SPECIFICATIONS
FREQUENCY COVERAGE

Amateur bands from 1.8Mhz through 54 MHz

RATED POWER INPUT
5W MAX.

INPUT POWER PROTECTION
BUILT IN

RATED POWER OUTPUT
Approx.500 W ±0.5 dB, PEP

OUTPUT POWER PROTECTION
USER CAN SET THE SWR ALARM THRESHOLD LEVEL

INTERMODULATION DISTORTION (IMD3)
Better than 30 dB below the rated PEP with Two tone test

HARMONIC AND PARASITIC
EMISSIONS OUTPUT SUPPRESSION

7-pole Chebyshev Filter, providing steep cut-off skirts and additional harmonic suppression

3.5Mhz (-37dB)
7Mhz    (-28dB)
14Mhz  (-33dB)
21Mhz  (-27dB)
25Mhz  (-29dB)
54Mhz  (-31.6dB)

SELF reveiew - running for several months at my shack awesom performance. Yes, there was initial iterations but we have resolved all issues including Input protection and thermal runaway

IN advance through PAYPAL from our site

Domestic buyers please reach us over email or whatsapp for several options for payment

FEDEX for International buyers

DTDC for domestic shipment
